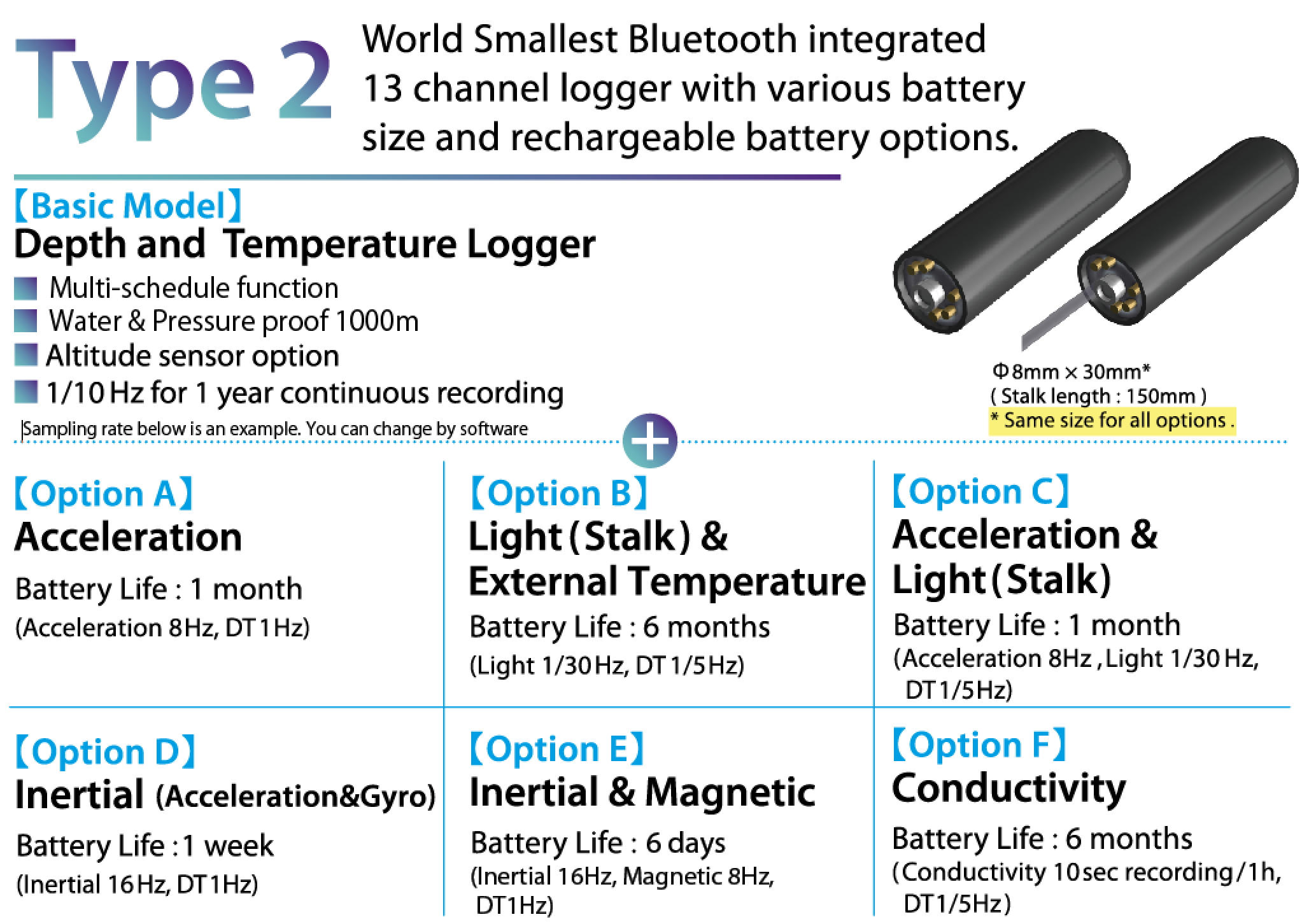

Biologger Type2

Type1 & Type2 Common
Depth Sensor500 m
Absolute Max Depth1,000 m
Operating Temperature-20 to +85 ℃
Real Time Clock Accuracyless than ±5 sec in 3 months
Temperature Accuracy±0.2 ℃
Flash Memory512 MB
Multi-schedule samplingYes
Required Peripherals
(Sold Separately)
USB adapter
Micro USB cable
Biologger software
Type2 Only
SizeDiameter: 8 mm, Length: 30 mm
Mass in airWith stalk: 3.2 g
Without stalk: 2.9 g
Mass in water1.4 g
Battery life
(Basic model: Depth & Temperature Logger)
1 months (1/10 Hz)
Depth Sensor
  Absolute Accuracy (Temperature range:0…40℃)±0.5 m (@200m depth)
  Resolution0.01 m
  Long-term stability±0.30 m/year
  Sampling rate1/n, 1, 2, 4, 8, 16, 32 Hz
Temperature Sensor
  Resolution0.0308 ℃
Accelerometer
  Sensor range±2, ±4, ±8 g
  Resolution8, 12 bits
  Sampling rate1, 2, 8, 16, 25, 50, 100, 200 Hz
Intertial Sensor (Accelerometer & Gyroscope Integrated )
  Accelerometer sensor range±2, ±4, ±8, 16 g
  Gyroscope sensor range±125, ±245, ±500, ±1000, ±2000 °/秒
  Sampling rate1, 2, 4, 8, 16, 26, 52, 104, 208 Hz
Magnetometer
  Sensitivity0.15 μT/LSB
  Sensor range±4912 μT
  Sampling rate1, 2, 4, 8, 16 Hz
Battery option
  Rechargeable batteryYes
  Bigger battery
Other options
  BluetoothYes
  Saltwater switchYes
  Convertion of depth sensor to altitude sensorYes
